Product Brief PRODUCT INTRODUCTION

• A single panel has 8 physical keys +2 touch keys +108 voice scene control, which perfectly solves the limitation of the number of traditional intelligent switch keys, makes the wall simple, atmospheric and classy, and breaks away from the ultimate trouble of wall-full panels.

• Advanced "Easy Chat" multi-modal voice human-machine interaction technology, no interference, error-free touch; Once wake up, the functional scene can be triggered continuously (such as continuous instruction Xiao Le Xiao Le, open the curtain, visit mode, open the chandelier...) .

• 360° omnidirectional microphone import intelligent chip, no need to open any holes on the key, 10 meters far field noise reduction, 0.01 seconds non-inductive delay, accurate response to each call.

• Voice data localization, not dependent on the network, more stable.

• The star belt in the middle adopts the "Up Down" double auxiliary key technology, which supports the smooth adjustment of light brightness, color temperature, curtain opening and closing degree, and music volume in different scenes.

• Built-in radar sensor, support backlight linkage, support as an independent sensor to the scene linkage, sensing distance of 10cm-100cm adjustable, default trigger distance of 60cm.

• Magnesium aluminum alloy process, 100,000 speed CNC fine carving, water grinding nano treatment, sand blasting oxidation imported from Japan, the surface shows bright metal texture.

• The key has a life of 10 million presses.

• Key text, laser engraving never fade.

• Ultra-thin design, outlet wall thickness is only 8.8mm, plug-in assembly.

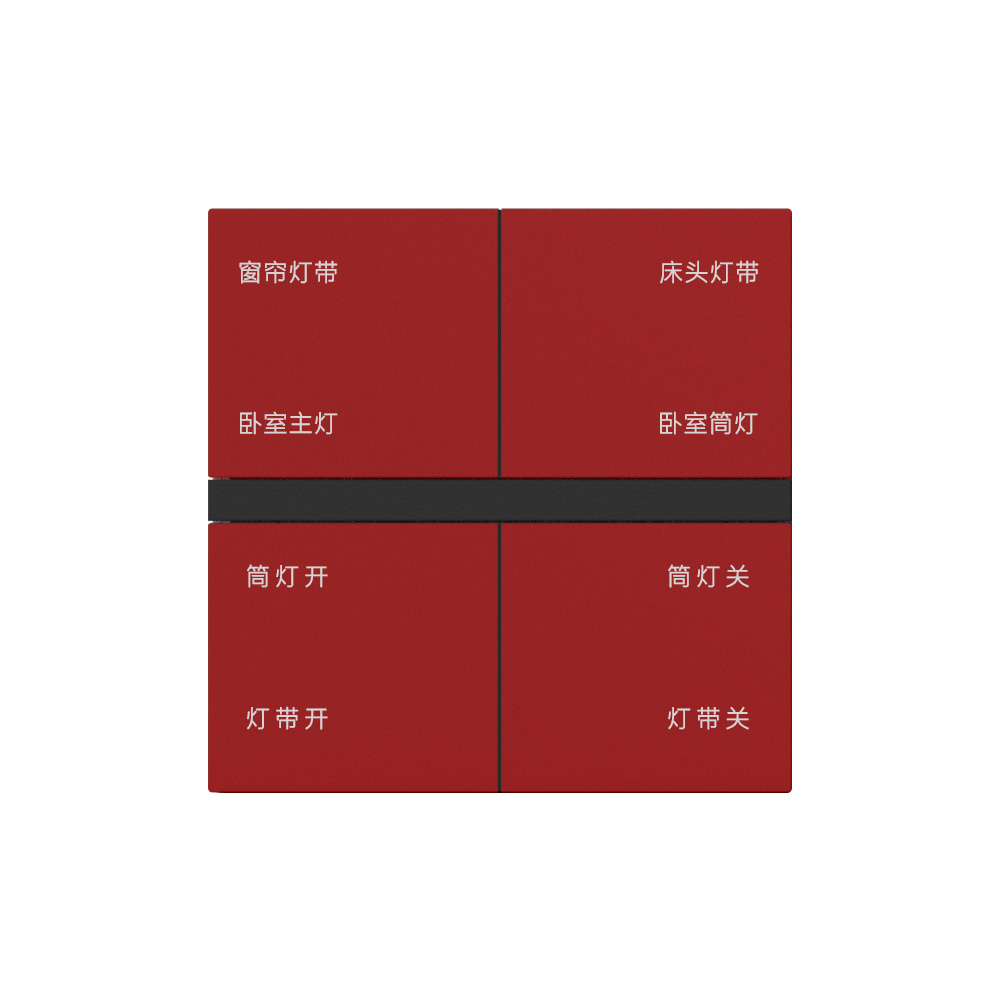

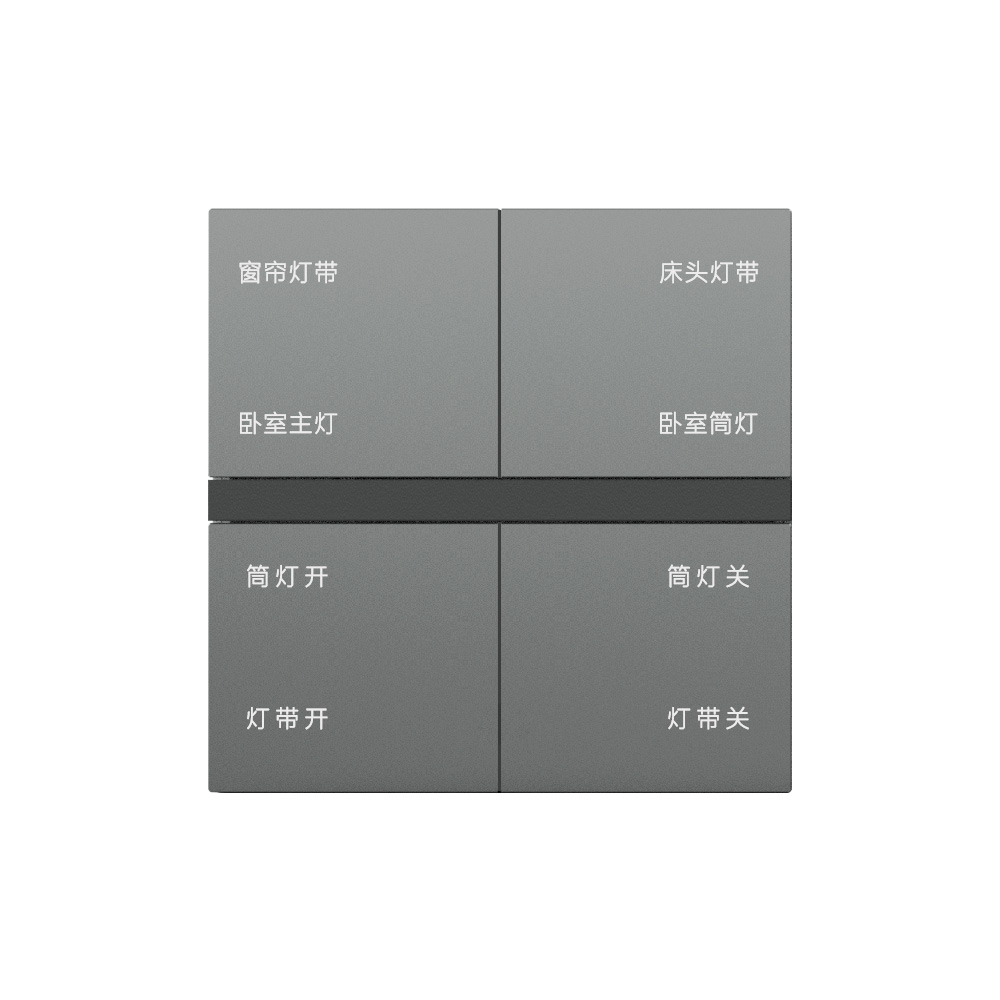

LX-XH-K08

Product parameters

• Physical keys: 8 mechanical keys +2 touch keys

• Voice keys: 108 (as defined by physical keys)

• Voice technology: Easy Chat multimodal speech recognition

• Adjustment technology: Star River double auxiliary key adjustment

• Human sensing: Adjustable range radar sensor

• Working voltage: DC12-24V

• Static current: 150mA

• Installation mode: Type 86 bottom box

• Overall dimensions: 86mm×86mm×35mm
