Product Brief PRODUCT INTRODUCTION

• A single panel can simultaneously control central air conditioning, floor heating and fresh air; Can display the environment center data (temperature + humidity); Equipped with precision temperature and humidity sensor chip.

• Advanced "Easy Chat" multi-modal voice human-machine interaction technology, the world's first intelligent temperature control to support voice operation, no interference, error-free touch; Once wake up, the function scene can be triggered continuously: such as continuous command Xiao Le Xiao Le, open the air conditioning, heating mode, temperature 28 degrees...... Free hands, relaxed, relatively ordinary smart panel, the use of features to the extreme. Users no longer have to worry that the elderly and children will not use the smart temperature control panel.

• 360° omnidirectional microphone import intelligent chip, no need to open any holes on the key, 10 meters far field noise reduction, 0.01 seconds non-inductive delay, accurate response to each call.

• Voice data localization, not dependent on the network, more stable.

• The use of "Happy Rainbow" neon interactive atmosphere light technology, so that the daily use of smart panels full of fun, lively, fashion, smart, scientific and technological sense. When operating, sensing, voice wake up, the panel atmosphere light can present different color effects to achieve wonderful interaction with people.

For example: during the festival, let the "Rainbow" show red, red (Hong) luck, full of happiness; For romance, make "Rainbow" pink; In winter, let the "Rainbow" appear as warm orange colors; In summer let the "Rainbow" appear ice blue...

• Built-in radar sensor, support backlight linkage, support as an independent sensor to the scene linkage, sensing distance of 10cm-100cm adjustable, default trigger distance of 60cm.

• Magnesium aluminum alloy process, 100,000 speed CNC fine carving, water grinding nano treatment, sand blasting oxidation imported from Japan, the surface shows bright metal texture.

• The key has a life of 10 million presses.

• Key text, laser engraving never fade.

• Ultra-thin design, outlet wall thickness is only 8.8mm, plug-in assembly.

• 5 rear-mounted relays

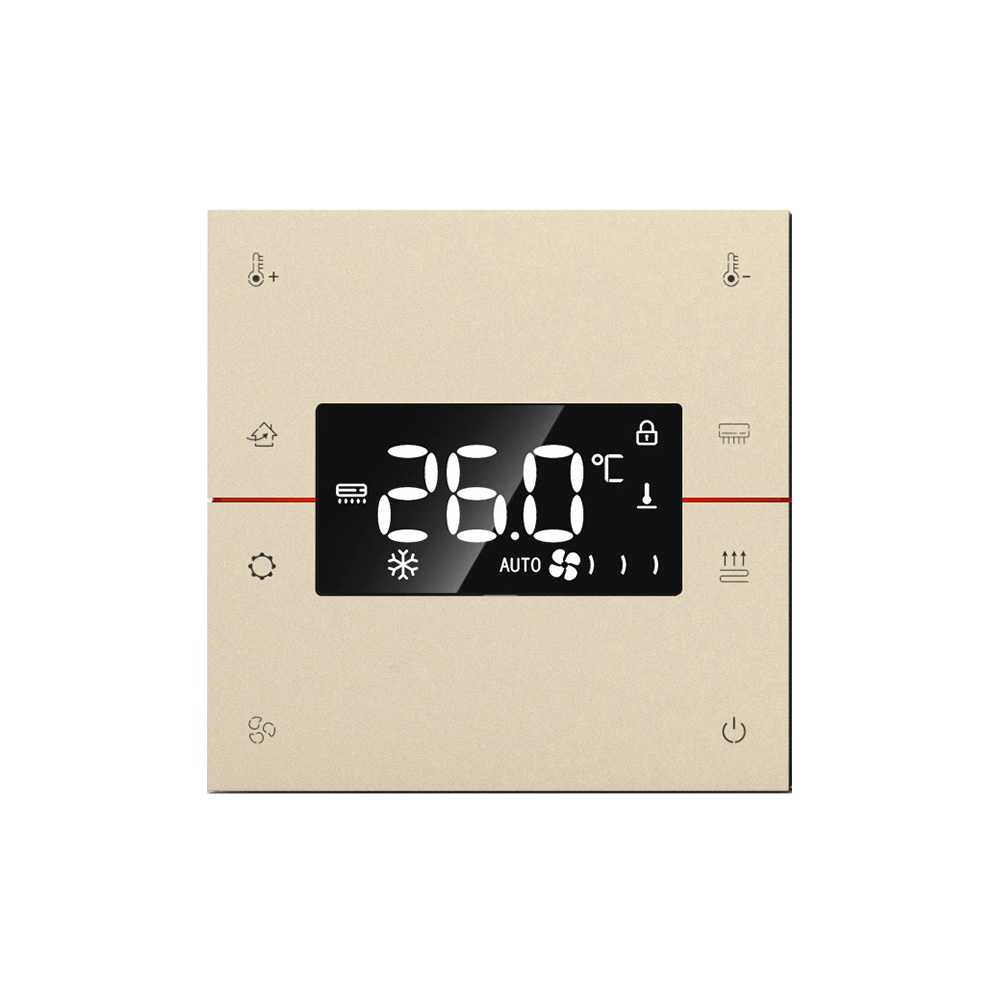

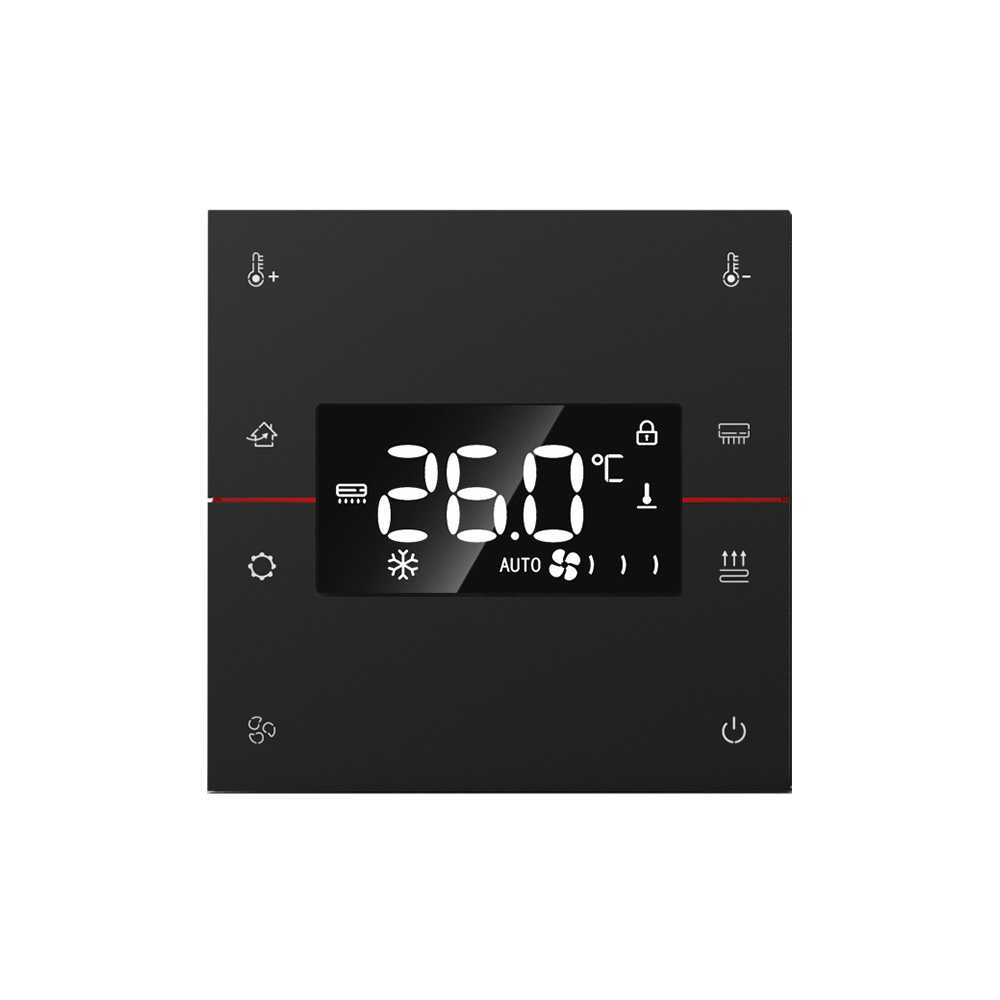

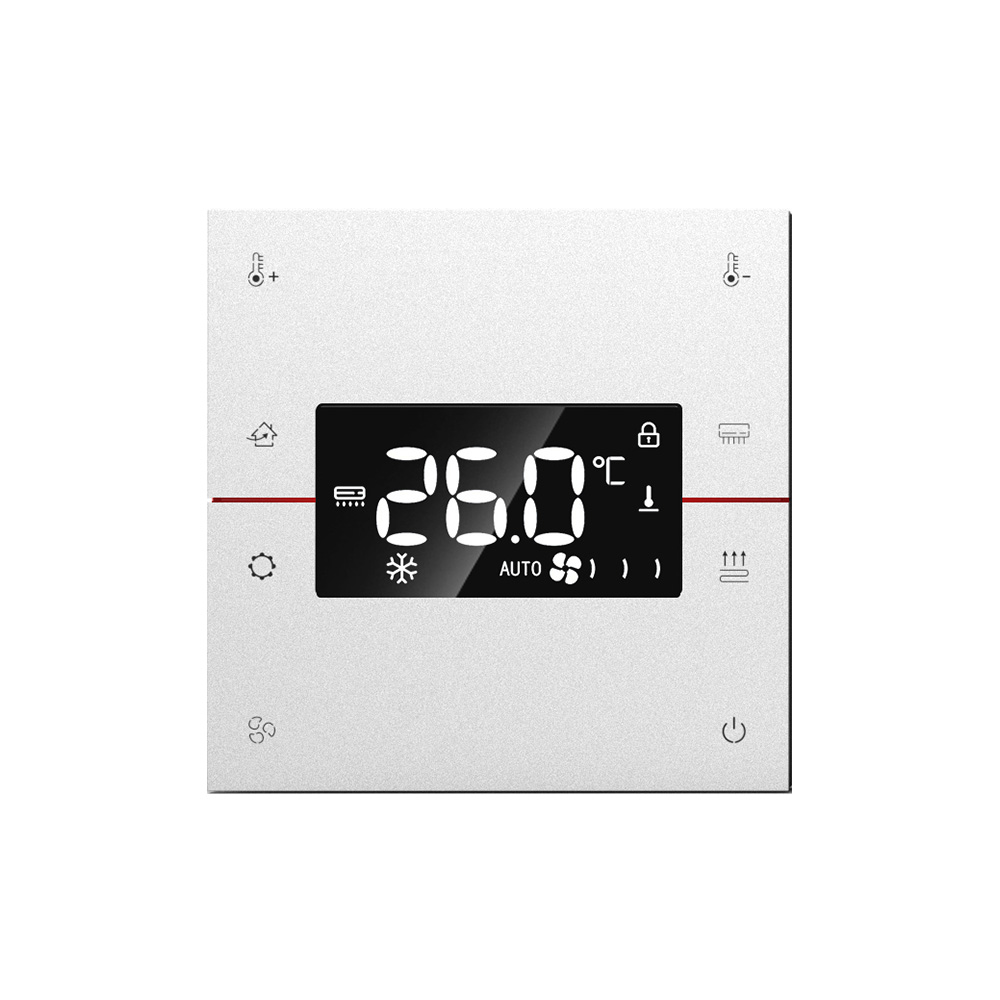

LX-NH-T08

Product parameters

• Physical keys: 8

• Voice button: Voice control for all operations of air conditioning, floor heating and fresh air

• Voice technology: Easy Chat multimodal speech recognition

• Interactive technology: Happy Rainbow ambiance lights

• Human sensing: Adjustable range radar sensor

• Sensing technology: built-in precision temperature and humidity sensor

• Working voltage: DC12-24V

• Static current: 150mA

• Output interface: 5 relays in the rear

• Installation mode: Type 86 bottom box

• Overall dimensions: 86mm×86mm×35mm
